Customizing
Our Coach
Bedroom
Electronics Installation
2006
Monaco Dynasty Platinum III
By
Bill Groves, © 3/22/2012
Vizio Razor 23” TV
DirecTV
HD DVR
Modulator for coach
distribution of dvr on CH14
UPS
for entire entertainment circuit
in coach.
Cradlepoint MBR1000 Wireless Router
with Air
Card Internet
HP Wireless 3 in one
printer with Airprint

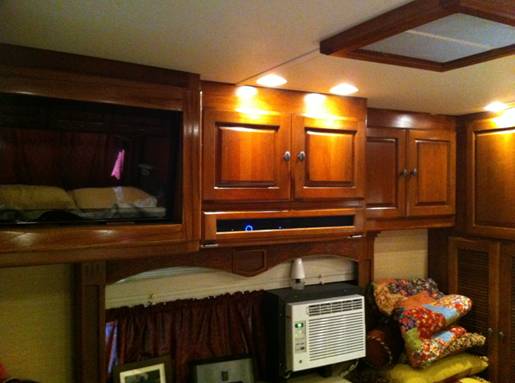

5000btu Battery Powered A/C
TV:
·
Recovers 7
cubic feet
storage space previously occupied by heavy CRT TV.
·

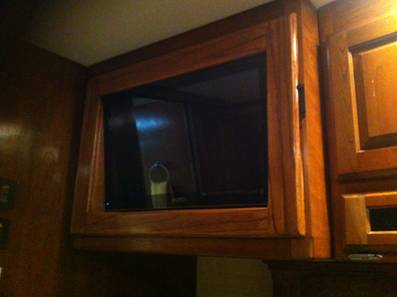

Mounted on
hinged door
· Allows viewing from bathroom area, or front room if you look down the hall.
· Glass screen with touch screen controls.
· Low power – uses about 25w
· Built in ATSC tuner.
· Mounting is optimally
angled for
viewing from bed as well as standing positions.
·
Also applicable to numerous
other coaches
with crt’s.

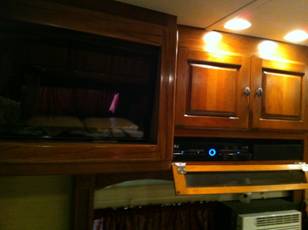

DVR:
·
HDMI
connected to Razor which is 1080P
·
Remote
is RF which allows control from entire coach and outside too.
·
AV
connects to Modulator and DVR output is broadcast on house rf
cable on channel 14
·
OTA
channels reside on house cable along with dvr
on
channel 14.
·
Dual
program recording.
o
One
tuner is driven by dedicated secondary rf
cable.
o
The
other tuner uses a diplexor to use the
other rf cable
for OTA and DTV.
Modulator:
·
Frequency
agile – Set up for uhf channel 14, mixed onto OTA house cable
·
Notch
filter up at JACK tv
antenna
entrance prevents any OTA channel 14 from interference.
·
Could
be replaced with ChannelPlus 5415HD when
price is
right for 1366 x 720p / 60fps (currently about $600 for modulator) or ZeeVee 280 with 1080 resolution (currently over
$2000 for
modulator). Currently analog channel 14
resolution is about 720 x 480 perhaps close to dvd quality.

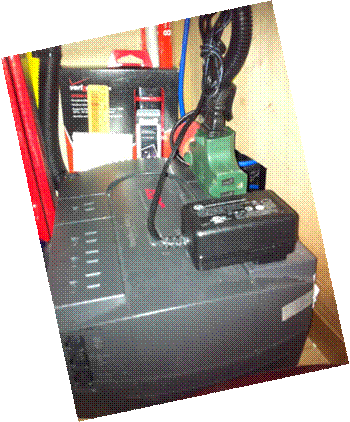

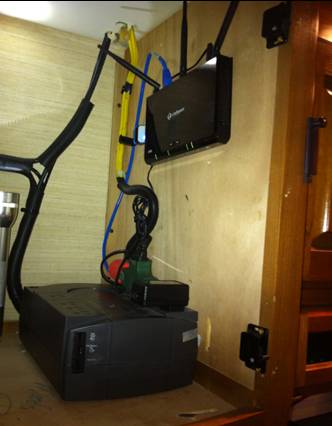

UPS:
·
Provides
complete protection for circuit #8 on inverter panel which provides
power to
all entertainment systems in coach.
·
Switch
time < 8ms
·
300
watts capacity… about twice what is needed.
·
Shoe
box size in bedroom TV cabinet.
·
Provides
about 15 minutes of standby operation if inverter and power are both
off.
·
Protects
awnings too.
·
Prevents
glitching of DVRs, TV and other electronics
which can
occur when generator switches off during dry camp conditions and
inverter takes
over. Inverter switch in time is 16ms and it is not designed to be an
UPS.

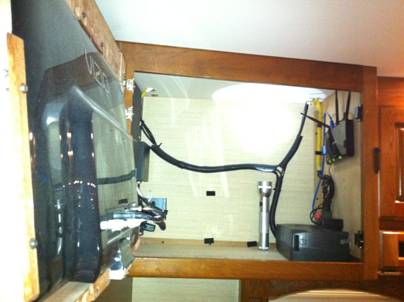

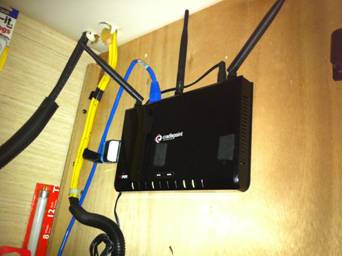

Cradlepoint
Router
·
Uses
Verizon Wireless, 551L 4g LTE usb air card. Also will bond with additional Ethernet
connections (aircards or other Ethernet
source)
·
Unlimited
BSP data account – no longer available, grandfathered in from
Alltel
·
Speed
typically 10mbps, 25mbps is the most i have clocked.
·
Connected
to front and rear dvr’s –
allows rental with remotes,
necessary if you want to record before you watch a movie. If you are
not
connected to Directv, you can only rent a
movie while
it is on the “guide”.
·
Connected
to Front 3d TV, BluRay 3d player, and
Outside Vizio 24 which have internet apps
such as Pandora and
Netflix.
·
Wireless
connection to various Iphones, and
computers.
·
Connection
to wireless HP Printer with AirPrint (Iphone / Ipad
support)

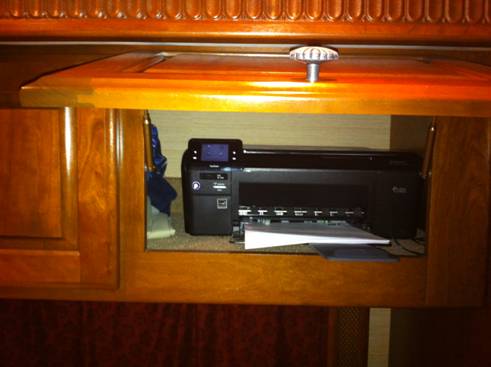

HP
3 in one Wireless
Printer
·
Has
Scanner and can make copies as well as print.
·
Wirelessly
connected to network
·
Out
of way in cabinet… close tray and close the door.

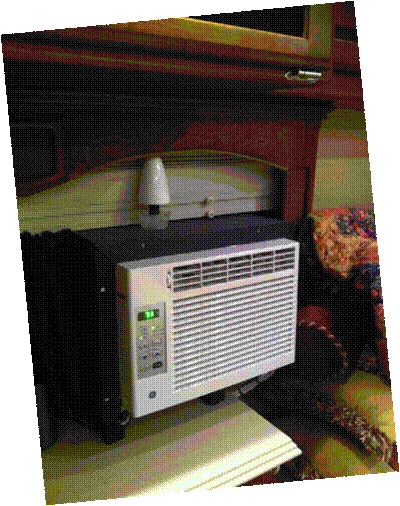

5000 BTU Battery Powered
Air
Conditioner
·
Battery
operation for those hot muggy dry camping nights
o
Power
drain is 50 amps to inverter while compressor is running, negligible
when just
fan.
o
Power
at night to inverter is typical – 65a compressor running, 15a not
running, 40a
average at 50% duty cycle.
o
Powered
by 660 Amp Hour house battery bank composed of 6 flooded golf cart
batteries.
§
Enough power to run all
night if need
be. Eight hours at 40 amps, 50% duty cycle = 320AH which is LT 50%.
Load
typically declines to minimal after midnight. We usually set it turn
off around
1am at the latest.
§
SeeVision on Aladin
allows monitoring of batteries.
o
Remote
control with timer
§
Allows you to set it to
run for a
couple hours until things cool off, then it turns off.
§
Set temp for comfort and
duty cycle
decreases as room cools and ambient drops
§
Functions as Fan,
Dehumidifier or Air
Conditioner.
·
Operation
with 30 amp shore power allows for one of the 15kbtu roof units and the
5kbtu
unit for total of 20kbtu on 30 amp service, a 33 percent improvement
over a single
roof unit.
·
Operation
off alternator while traveling. Coach has 200 amp alternator
and 5kbtu in rear helps dash air tremendously. This probably doubles
the dash
air capacity. We don’t need to run genny
and roof
units unless its
REALLY hot.
Coach also gets about 20amps from solar on a sunny day which gives the
sun
something to do.
·
Total
A/C is 35kbtu/hr (not counting dash air) up from 30kbtu/hr. The
5kbtu/hr which
is direct air you in the bedroom area actually cools you faster than
the 15kbtu
roof unit does because it does not have any roof ducting to cool down.
The cold
air blows right where it needs to go. You can tell this puppy to drop
the
bedroom temp 2 degrees and it will put you to sleep in less than 2
minutes.
·

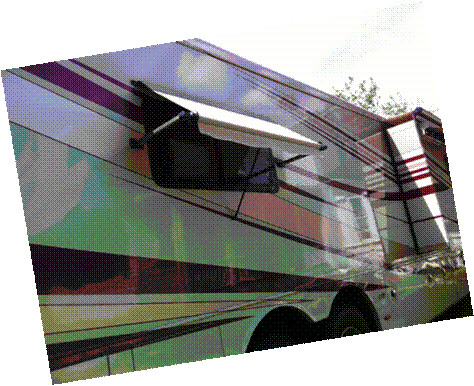

Does
not affect emergency egress, which is from window behind the bed
headboard. (the other side).
·
Window
is open-able about 2” for cross ventilation if desired.
·

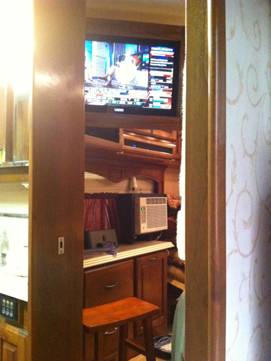

Custom
plenum box allows unit to not hang out like a normal window unit would.
Unit
primarily supported on cabinet top inside. Unit not notice-able
especially when
window awning is out.
·
This
was put
in as an experiment and works so good that we would not take it out for
anything. If I had the nerve to put intake and exhaust ports behind the
tv cabinet in
the fiberglass I would
like that, thus regaining full use of the curbside window. But, making
a
waterproof box to put in there would be a challenge. The plenum box it
is in is
canted towards the window and treated with silicone so any water that
drips out
goes out the window ledge.
The
bedroom
is also home for a Iphone

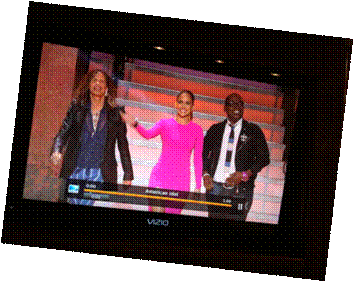

supportive clock radio and a digital picture frame. The Vizio
is also picture capable via USB.
I
